ORIGINAL RESEARCH ARTICLE

Anatomical study of vulnerable sensory and expendable motor nerves for targeted muscle reinnervation in the upper extremity

Kenji Kawamura^a , Hideo Hasegawa^a, Shohei Omokawa^b, Pasuk Mahakkanukrauh^c and Yasuhito Tanaka^a

^aDepartment of Orthopaedic Surgery, Nara Medical University, Nara, Japan; ^bDepartment of Hand Surgery, Nara Medical University, Nara, Japan; ^cDepartment of Anatomy, Faculty of Medicine, Chiang Mai University, Chiang Mai, Thailand

ABSTRACT

Purpose: Targeted muscle reinnervation (TMR) is a new technique for treating symptomatic neuroma, in which a sensory nerve after resection of a painful neuroma is coapted to an expendable motor nerve. There has been little information about optimal motor nerves for TMR of the vulnerable sensory nerves in the upper extremity.

Methods: Fourteen upper extremities of fresh-frozen cadavers were dissected to describe the anatomical course of the vulnerable sensory nerves, which included the superficial radial nerve, the dorsal branch of the ulnar nerve, and the medial and lateral antebrachial cutaneous nerves. The bifurcation, diameter, and entry points in muscles of expendable motor nerves suitable for TMR of the sensory nerves were investigated.

Results: The distal anterior interosseus nerve was available as a donor for TMR of the superficial radial nerve and the dorsal branch of the ulnar nerve in the distal third of the forearm. The motor branch to the pronator teres muscle was suitable for TMR of the medial antebrachial cutaneous nerve. It was possible to transfer the lateral antebrachial cutaneous nerve to the motor branch of the brachioradialis or extensor carpi radialis longus muscles.

Conclusions: The results of this anatomical study provide useful information when TMR is applied for neuromas of the sensory nerves in the upper extremity.

KEYWORDS: Neuroma; sensory nerve; targeted muscle reinnervation; upper extremity





Introduction

It is estimated that transected sensory nerves develop into symptomatic neuromas, which can cause chronic pain, in up to 25% of patients [1]. Neuroma formation is caused by aberrant regeneration of the proximal nerve end when it lacks a distal target and pathway [2]. Traditional surgical treatment options have variable efficacy, and include neurectomy, neurolysis, relocation of the nerve stump into deeper tissues such as muscle or bone, and capping of the nerve stump [3]. However, up to 30% of painful neuromas do not improve with traditional surgical treatment [4, 5]. Targeted muscle reinnervation (TMR) is a new technique used for treatment of symptomatic neuromas [6]. TMR was originally described as the transfer of mixed motor/sensory nerves to motor nerves for myoelectric control of a prosthesis, although it was also found to prevent neuroma formation and improve pain after major limb loss [7, 8]. Furthermore, TMR was reported to be more effective for treatment of postamputation neuroma pain compared with traditional neurectomy and muscle burying [9].

Traumatic peripheral neuroma formation is a major cause of neuropathic pain, which remains a challenging problem faced by surgeons. Neuromas of the upper extremity can cause considerable and debilitating pain, which significantly decreases patients’ quality of life [10]. The superficial radial nerve (SRN) is the most vulnerable nerve to injury from trauma or surgery in the forearm, and is a common site for painful peripheral neuromas [11]. The dorsal branch of the ulnar nerve (DBUN) is also vulnerable to injury from trauma or surgery on the ulnar side of the wrist [12, 13]. The medial antebrachial cutaneous nerve (MACN) can be damaged by numerous iatrogenic sources, including injection for medial epicondylitis, cubital nerve surgery, elbow arthroscopy, and open elbow surgery [14, 15]. Furthermore, the lateral antebrachial cutaneous nerve (LACN) is easily injured during vein puncture [16, 17]. Importantly, TMR is also applicable to neuromas following such peripheral nerve injury via transfer of a transected sensory nerve to a motor entry point (MEP) of an expendable nearby muscle, which provides a pathway and target for regeneration to reduce neuroma formation [18–20]. However, there is currently little information available on which motor nerves are anatomically suitable targets for TMR of the vulnerable sensory nerves in the upper extremity. TMR requires precise anatomical knowledge of innervation of possible motor targets, which is essential for efficient and safe nerve harvest and transfer. The aim of this anatomical study was to analyze the anatomical course of the SRN, DBUN, MACN, and LACN to identify the optimal motor nerves for TMR.

Materials and methods

After institutional ethical approval was obtained, we examined 14 upper extremities of seven fresh-frozen adult cadavers without surgical or traumatic scars in the upper extremity. All skin of the upper arm and forearm was carefully excised, while the sensory nerves were preserved on the cadaveric side. Next, dissection was performed to describe the anatomical course of the SRN, DBUN, MACN, and LACN. Measurements were made with a ruler or caliper and presented as mean ± standard deviation.

To evaluate the course of the SRN in the forearm, the distance between the radial styloid process and subcutaneous emergence between the brachioradialis (BR) and the extensor carpi radialis longus (ECRL) tendons were measured. The ulnar nerve and its branch (the DBUN) were dissected, and the distance between the branching point and the radial styloid process was measured. The distal anterior interosseus nerve (AIN) was reported as a candidate target for TMR [21, 22]. Because the motor branch to the flexor pollicis longus (FPL) muscle of the AIN must be preserved, the distance between the motor branch to the FPL and the radial styloid process was measured. The distance between the motor branch to the FPL and the MEP of the pronator quadratus (PQ) muscle was also measured. Finally, we measured the diameters of the SRN and DBUN at the radial styloid process, and the diameter of the AIN just distal to the motor branch to the FPL.

In the medial side of the elbow, the MACN was dissected, and its diameter was measured at the medial epicondyle of the humerus. The median nerve was dissected to identify the motor branch to the pronator teres (PT) muscle as a target for TMR of the MACN because the motor branch to the PT is the most proximal branch of the median nerve. Another reason is that the PT has multiple motor branches to enter the two muscle bellies, one motor branch is expendable. The motor branch closest to the medial epicondyle of the humerus was selected as a target. The distance between the medial epicondyle of the humerus and the motor branch to the PT was also measured. Finally, we measured the diameter and MEP of the motor branch to the PT.

In the lateral side of the elbow, the distance between the lateral epicondyle of the humerus and subcutaneous emergence of the LACN between the biceps brachii and the BR muscles was measured. The diameter of the LACN at the lateral epicondyle of the humerus was also measured. The radial nerve was dissected to identify the motor branches to the BR and ECRL as targets for TMR of the LACN because both BR and ECRL are expendable. When there were multiple motor branches to the BR and ECRL, the motor branch closest to the lateral epicondyle of the humerus was selected in each. The distances between the BR and ECRL motor branches and the lateral epicondyle of the humerus were measured, respectively. Finally, the diameters and MEPs of the motor branches to the BR and ECRL were measured.

Results

The findings of this cadaveric study are summarized in Table 1. The SRN emerged superficially at 86 ± 20 mm proximal to the radial styloid process (Figure 1). The DBUN branched from the ulnar nerve at 77 ± 10 mm proximal to the radial styloid process (Figure 2). The AIN branched off its motor branch to the FPL at 117 ± 16 mm proximal to the radial styloid process, and then traveled 61 ± 17 mm distally before entering to the PQ (Figure 3). The MEP of the PT was located at 56 ± 7 mm proximal to the radial styloid process. The diameters of the SRN and DBUN at the radial styloid process were 1.9 ± 0.2 mm and 1.8 ± 0.3 mm, respectively. The diameter of the AIN, just distal to the motor branch to the FPL, was 1.4 ± 0.2 mm. From the anatomical findings, the distal AIN was available as a donor for TMR of the SRN and the DBUN in the distal third of the forearm.

Table 1. Optimal targets for TMR of the vulnerable sensory nerves in the upper extremity.

Targeted muscle	Mean branching point of motor nerve	Mean motor entry point	Mean length of motor branch (mm)	Mean diameter of motor nerve (mm)	Sensory nerve for TMR (mean diameter)
PQ	117 mm proximal to RS	56 mm proximal to RS	61	1.4	SRN (1.9 mm)
					DBUN (1.8 mm)
PT	5 mm distal to ME	27 mm distal to ME	22	1.6	MACN (1.6 mm)
BR	33 mm proximal to LE	13 mm proximal to LE	20	1.3	LACN (2.0 mm)
ECRL	14 mm proximal to LE	11 mm distal to LE	25	1.4	LACN (2.0 mm)
PQ: pronator quadratus muscle; PT: pronator teres muscle; BR: brachioradialis muscle; ECRL: extensor carpi radialis longus muscle; SRN: superficial radial nerve; DBUN: dorsal branch of the ulnar nerve; MACN: medial antebrachial cutaneous nerve; LACN: lateral antebrachial cutaneous nerve; RS: radial styloid process; ME: medial epicondyle of the humerus; LE: lateral epicondyle of the humerus; TMR: Targeted muscle reinnervation.

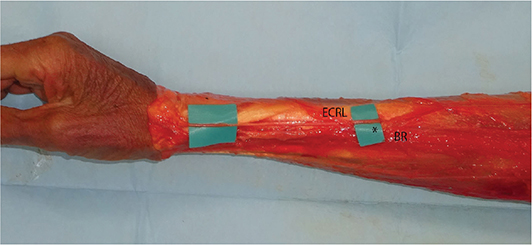

Figure 1. Anatomical course of the superficial radial nerve (SRN). The SRN (*) emerged superficially between the brachioradialis and extensor carpi radialis longus tendons at a mean distance of 86 mm proximal to the radial styloid process.

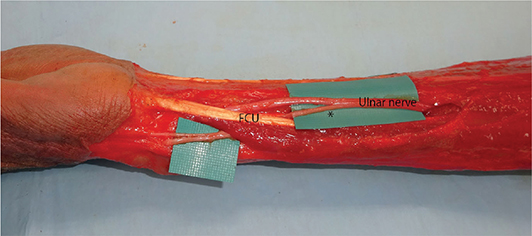

Figure 2. Anatomical course of the dorsal branch of the ulnar nerve (DBUN). The DBUN (*) branched from the ulnar nerve at a mean distance of 77 mm proximal to the radial styloid process, and traveled distally under the flexor carpi ulnaris (FCU) muscle.

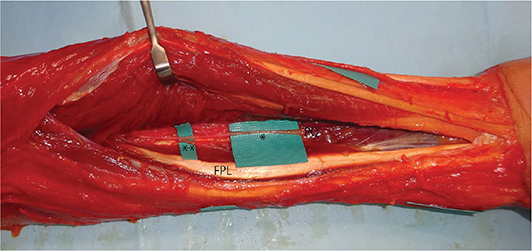

Figure 3. Anatomical course of the anterior interosseus nerve (AIN). The AIN (*) branched off its motor branch to the flexor pollicis longus (FPL) muscle (**), and then traveled distally before entering the pronator quadratus (PQ) muscle.

The MACN ran anterior to the medial epicondyle of the humerus (diameter, 1.6 ± 0.3 mm). The motor branch to the PT closest to the medial epicondyle of the humerus branched from the median nerve at 5 ± 14 mm distal to the medial epicondyle of the humerus, and entered to the PT at 22 ± 11 mm distally (Figure 4). The MEP of the PT was located at 27 ± 11 mm distal to the medial epicondyle of the humerus. The diameter of the motor branch to the PT was 1.6 ± 0.3 mm. The anatomical findings revealed that the motor branch to the PT was suitable for TMR of the MACN at a location distal to the medial epicondyle of the humerus.

Figure 4. Anatomical course of the medial antebrachial cutaneous nerve (MACN) and motor branches to the pronator teres (PT) muscle. The MACN (*) ran anterior to the medial epicondyle of the humerus. The motor branches to the PT (**) branched from the median nerve and entered the PT distally.

The LACN emerged superficially at 25 ± 9 mm proximal to the lateral epicondyle of the humerus (diameter, 2.0 ± 0.3 mm). The motor branches to the BR and ECRL closest to the lateral epicondyle of the humerus branched from the radial nerve at 33 ± 17 mm and 14 ± 9 mm proximal to the lateral epicondyle of the humerus, and entered each muscle at 20 ± 11 mm and 25 ± 8 mm distally, respectively (Figure 5). The MEPs of the BR and ECRL were located at 13 ± 20 mm proximal and 11 ± 11 mm distal to the lateral epicondyle of the humerus, respectively. The diameters of the motor branches to the BR and ECRL muscles were 1.3 ± 0.2 mm and 1.4 ± 0.2 mm, respectively. It was possible to transfer the LACN to the motor branch of the BR or ECRL.

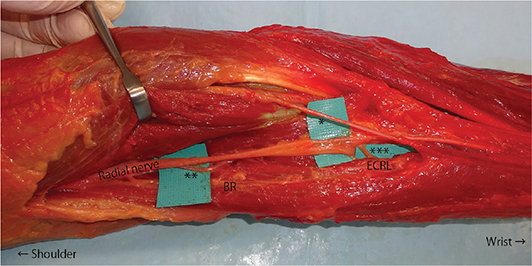

Figure 5. Anatomical course of the lateral antebrachial cutaneous nerve (LACN) and motor branches to the brachioradialis (BR) and extensor carpi radialis longus (ECRL) muscles. The LACN (*) emerged superficially at a mean distance of 25 mm proximal to the lateral epicondyle of the humerus. The motor branches to the BR (**) and ECRL (***) branched from the radial nerve and entered each muscle distally.

Discussion

There are a number of important considerations when performing TMR for the treatment of sensory nerve neuromas, which include that the sensory nerve is coapted to a nearby expendable motor nerve without tension, an expendable motor nerve is easily accessible, and that the diameter of an expendable nerve is matched to the sensory nerve diameter (Figure 6). In this anatomical study, we examined the optimal motor nerves for performing TMR of the vulnerable sensory nerves in the upper extremity. The SRN is the most easily injured cutaneous nerve in the upper extremity and has the highest frequency of painful neuroma formation [11, 23]. Neuromas of the DBUN are less common, but can occur from traumatic and iatrogenic injuries [12, 13]. The distal AIN was reported to be a suitable donor target when considering TMR for neuromas of the SRN, DBUN, and the palmar cutaneous branch of the median nerve [21, 22]. Cavadas et al. reported a case of symptom improvement after distal AIN transfer for a neuroma of the DBUN [13]. Grome et al. also reported a case of complete symptom resolution after using the distal AIN as a motor target for a neuroma of the palmar cutaneous branch of the median nerve [18]. The distal AIN is anatomically consistent and expendable in patients with a functioning PT. The results of this study indicated that it was possible to transfer the AIN a mean distance of 61 mm from the MEP of the PQ, while avoiding damage to the motor branch to the FPL. The freely transferable length of 61 mm was similar to the 56.4 mm of the previous study by Langeveld et al. [21]. As reported by Langeveld et al., this study also showed that the distal AIN had sufficient length to perform TMR for the SRN and the DBUN in the distal third of the forearm. The 1.4 mm diameter of the distal AIN was acceptable for suturing with the 1.9 mm diameter SRN and the 1.8 mm diameter DBUN.

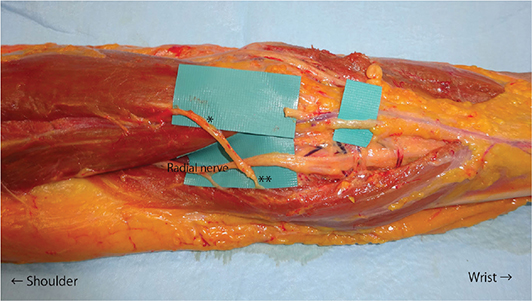

Figure 6. Targeted muscle reinnervation of the lateral antebrachial cutaneous nerve (LACN) with the motor branch to the brachioradialis (BR). The LACN (*) was transected just proximal to intersection with the cephalic vein and coapted to the motor branch to the BR (**) without tension.

The anterior and posterior branches of the MACN are located at the medial side of the elbow. Because of the marked variability in their anatomic positions, especially of the posterior branches, they are highly susceptible to iatrogenic damage during cubital tunnel surgery or other medial approaches to the elbow [24]. Mackinnon et al. showed an incidence of MACN neuromas in 73 of 100 patients who underwent revision surgery after cubital tunnel release [25]. The posterior branch of the MACN distal to the medial epicondyle of the humerus is vulnerable to injury during cubital tunnel surgery. The results of our study showed that the motor branch to the PT was a suitable donor target when considering TMR for neuromas of the MACN. The PT has two different points of origin: the humeral head and the ulnar head. The humeral head is larger and more superficial, while the ulnar head is deeper and joins at an acute angle to form one muscle belly. Each muscle head typically has a motor branch. The motor branch to the PT closest to the medial epicondyle of the humerus branched from the median nerve at a mean distance of 5 mm distal to the medial epicondyle of the humerus and entered the PT at a mean distance of 22 mm distally. The freely transferable length of 22 mm was sufficient to perform TMR for the MACN at a location distal to the medial epicondyle of the humerus. The mean diameter of the motor branch to the PT was 1.6 mm, which was well matched with the mean 1.6 mm diameter of the MACN.

The LACN is located in close proximity to the cephalic vein all along its course [17], and is thus susceptible to injury during venipuncture [16]. When considering TMR for neuromas of the LACN in the distal third of the forearm, the distal AIN is a suitable donor target. However, other donor targets are necessary for neuromas in the proximal two-thirds of the forearm and elbow. The results of this study revealed that motor branches of the BR and ECRL were suitable for TMR of the proximal LACN. Both the BR and ECRL are expendable. The motor branches of the BR and ECRL branched from the radial nerves around the elbow, which are easily accessible. The 2.0 mm diameter LACN was acceptable for suturing with the 1.3 mm diameter BR and the 1.4 mm diameter ECRL. Neuromas of the proximal SRN are less common because of protection of the nerve under the BR, but may occur following sharp trauma [5]. For neuromas of the SRN in the proximal two-thirds of the forearm, the motor branch to the BR or ERCL may be a suitable motor target [21].

A limitation of this study was the small number of cadavers. Nevertheless, our results are reliable because the investigated expendable motor nerves are anatomically consistent. Another limitation is that although TMR of vulnerable sensory nerves in the upper extremity was proved to be anatomically possible, clinical outcomes remain unknown because few clinical cases have been reported to date.

Conclusion

The results of this anatomical study provide useful information when TMR is applied for neuromas of the vulnerable sensory nerves in the upper extremity. The distal AIN was available as a donor for TMR of the SRN and DBUN in the distal third of the forearm. The motor branch to the PT was suitable for TMR of the MACN. It was possible to transfer the LACN to the motor branch of the BR or ECRL.

Acknowledgments

The authors would like to thank the donors and their families, the staff of the Excellence in Osteology Research and Training Center, the Surgical Training Center, and the Department of Anatomy and Orthopedics of Chiang Mai University for their assistance in this study.

Institutional review board statement

The study protocol involving human cadavers was approved by the Chiang Mai University Faculty of Medicine Research Ethics Committee, Chiang Mai, Thailand (code: ANA-2567–0011, 0013). The cadavers used in the study were provided by the Department of Anatomy at Chiang Mai University. Consent to use the cadavers and submit for publication was obtained from the patients before death.

Data availability statement

Data are available upon reasonable request by contacting the corresponding author.
