ORIGINAL RESEARCH ARTICLE

Medial femoral condyle flap for ulnar reconstruction and structural bone allograft for radial reconstruction in post-traumatic forearm diaphyseal non-union: a two-case report

Matthias Holzbauer^a,b, Maximilian Zaussinger^b,c, Klaus Strassmair^b, Stefan M. Froschauer^a,b, Tobias Gotterbarm^a,b and Manfred Schmidt^b,c

^aDepartment of Orthopaedics and Traumatology, Kepler University Hospital GmbH, Linz, Austria; ^bMedical Faculty, Johannes Kepler University Linz, Linz, Austria; ^cDepartment of Plastic, Aesthetic, and Reconstructive Surgery, Kepler University Hospital GmbH, Linz, Austria

ABSTRACT

The successful treatment of forearm non-unions, which occur as a complication in 2–10% of all forearm fractures, poses a significant challenge in reconstructive surgery. Current treatment often involves revision fixation with non-vascularized bone grafts for atrophic non-unions. Large bony defects in both forearm bones, however, necessitate advanced reconstructive techniques. In isolated reconstructions of the radius or ulna, the vascularized medial femoral condyle (MFC) flap has gained popularity, achieving 98–100% union rate. Allogenic bone grafts have also been described for reconstruction of large bone defects, potentially reducing donor site morbidity and operation time.

This two-case report investigates the performance of vascularized MFC cortico-cancellous flap for ulna reconstruction and tricortical allogenic bone graft of the iliac crest for radius reconstruction in excessive, post-traumatic, atrophic non-union of the forearm diaphysis. In May and June 2021, a 62-year-old and a 56-year-old male received reconstruction surgery 9 and 13 months after initial plate osteosynthesis after a motorcycle accident.

The MFC flap showed successful bony union of the ulna after 3 months as well as consecutive remodeling. However, the reconstruction of the radius showed a recurrent non-union, which even led to plate breakage in one case.

In both cases, ulnar reconstruction with a vascularized MFC flap achieved successful union. However, radial reconstruction using structural allograft did not achieve union, causing recurrent non-union, likely reflecting limited biological incorporation.

Level of Evidence: V (Therapeutic)

KEYWORDS: Bone allograft; bone reconstruction; forearm non-union; medial femoral condyle flap; plastic surgery; post-traumatic non-union





Introduction

In forearm fractures, non-unions occur in 2–10% of all forearm fractures [1]. The Food and Drug Administration (FDA) defines a no-union as ‘a fracture that persists for a minimum of 9 months without signs of healing for 3 months’ [2]. Weber and Čech classify non-unions into atrophic, oligotropic, and hypertropic non-union [3]. Due to the complex mechanism of fracture healing and its dysfunctions resulting in non-union, the ‘Diamond Concept’ was introduced, emphasizing cellular environment, the growth factors, the bone matrix, and the mechanical stability [4]. More advanced non-union classifications have since been developed [5, 6], although Calori et al. summarize the difficulty in the diagnosis and further successful treatment of non-union ‘as no two cases of non-union are apparently alike’ [6]. While atrophic non-union is considered to be caused by poor vascularity, histological analyses do not completely support this radiological finding [7, 8].

In isolated ulnar or radial diaphyseal non-unions, effective treatment includes debridement of avital bone tissue, removal of failed hardware, restoration of length, alignment, and rotation, as well as stable fixation using compression osteosynthesis methods (e.g. 3.5 mm plates] [9]. For defects up to 6 cm of length, autologous bone grafts – most commonly harvested from the iliac crest are recommended [9, 10]. However, treating non-unions of both the radius and the ulna poses a significant surgical challenge in achieving the aforementioned mechanical objectives while ensuring enough biological healing properties. For the treatment of forearm non-unions, current literature supports reconstruction using compression plating with autologous bone grafts in large bone loss (3–5 cm) [1], while vascularized bone grafts should be considered in defects larger than 5–6 cm [11]. A recent scoping review reports that the vascularized fibula graft is most utilized in diaphyseal osseous gap reconstruction in the upper extremity [12]. Recently, the vascularized medial femoral condyle (MFC) flap, first described by Sakai in 1991, has gained increasing popularity in bony defect reconstructions [13]. MFC flap offers several advantages including a constant pedicle anatomy [14], a maximal flap length up to 13 cm, and a stable cortical bone with various contouring options [15]. In upper extremity reconstructions, the MFC flap yielded an overall flap failure rate of 2% in recent meta-analysis [16]. In terms of isolated reconstructions of either the radius or the ulna using a MFC cortico-cancellous or periosteal flaps, a recent systematic review reported a union rate of 100% [11].

Alternatively, allogenic bone grafts have been suggested as an option for addressing large bone defects of the radius in patients with infected non-unions and after tumor excision [17, 18]. Considering the higher rates of recurring non-unions at single allograft-host bone junctions, this option appears attractive for the simultaneous reconstruction of both forearm bones: If a MFC reconstruction for the ulna is performed, radius reconstruction using a bone allograft aims to reduce donor site morbidity and operation time.

No reports exist in the literature describing simultaneous reconstruction of both forearm bones using a vascularized MFC graft for the ulna combined with a structural graft for the radius in extensive atrophic diaphyseal non-union.

Case presentation

The first case includes a 62-year-old male patient, who suffered an open forearm diaphysis fracture including a two-level ulna fracture, a radial head and a coronoid process fracture following a motorcycle accident. Initial treatment was performed at another clinic using a 12-hole Variable Angle Locking Compression Plate (VA-LCP) for the radius and a 14-hole VA-LCP plate for the ulna including each one lag screw. Due to persistent delayed bony union until 6 months postoperatively, high-energy extracorporeal shockwave therapy was applied. However, CT imaging 9 months postoperatively showed a persistent bony defect zone of at least 2 cm for the radius and 3 cm for ulna with no signs of bony consolidation. Due to the presence of an atrophic non-union, reconstruction surgery was performed 9 months after the initial trauma in May 2021: Excision of the non-union resulted in a bony defect of 3 and 4 cm for the ulna and the radius, respectively. The defects were reconstructed using a MFC flap for the ulna and a sizematched structural allograft for the radius, both stabilized with a 10-hole and an 8-hole VA-LCP (see Figure 1). Following reconstructive surgery, pain and swelling at the harvest site were managed through partial weight-bearing and local treatment. Bony union of the MFC flap could be achieved 3 months postoperatively, while complete remodeling was observed 7 months postoperatively (see Video 1). Twenty months after reconstructive surgery, the patient presented with plate breakage due to a recurrent non-union of the radius (see Figure 1). This patient has no known risk factor for impaired bony healing with arterial hypertension as the only pre-existing condition.

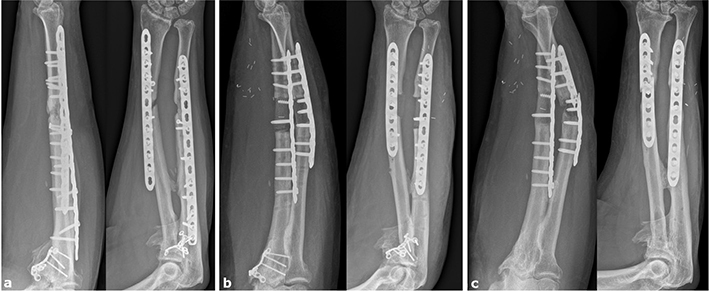

Figure 1. Case 1 Radiographs. Radiographs obtained preoperatively (a) after splint removal (b) as well as 20 months after reconstruction surgery (c).

The second case involves a 56-year-old male polytrauma patient who was transferred to our clinic after a motorcycle accident. He showed an open, comminuted fracture of the radius and ulna diaphysis, while he also suffered a traumatic amputation of the left lower leg, rib fractures, and a fracture of the coracoid process. Initial treatment included a 7-hole VA-LAP osteosynthesis of the ulna, while no compression of the fracture site could be achieved due to a comminution zone of 1 cm. The radius was treated using an 8-hole plate osteosynthesis and one lag screw. A concomitant soft tissue defect necessitated seven wound revisions including Vacuum Assisted Closure cycles before being ultimately covered with a vascularized muscle flap and split skin-grafting 20 days after the accident. Postoperative radiographic imaging showed no signs of bony consolidation resulting in a defect zone of 3 and 4 cm of the radius and ulna, which was verified in a CT scan 10 months postoperatively. Due to atrophic forearm non-union, reconstructive surgery was performed 13 months after the accident in June 2021. This procedure involved the excision of a bony defect of approximately 5 cm in both the radius and the ulna. The defects were again reconstructed using a MFC flap for the ulna and a size-matched structural allograft for the radius, both stabilized with a 10-hole and a 9-hole VA-LCP (see Figure 2). Bony union of the MFC flap could be achieved 3 months postoperatively. While CT scans taken 9 and 19 months after the reconstruction surgery revealed a complete remodeling of the MFC flap, recurrent atrophic non-union of the radius with significant lysis of the allogeneic graft was observed (see Figure 2 and Video 2). This patient showed chronic alcohol abuse and chronic obstructive pulmonary disease as pre-existing conditions in his medical history.

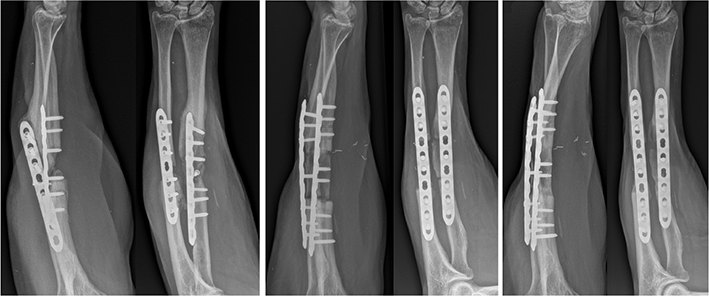

Figure 2. Case 2 Radiographs. Radiographs obtained preoperatively (a) after splint removal (b) as well as 19 months after reconstruction surgery (c).

Surgical technique

Reconstructive surgery involved excision of the non-union area until bleeding cortical margins are achieved. Ulna reconstruction involved a vascularized, cortico-cancellous MFC flap from the contralateral knee. Flap harvesting was aided by a 3D printed model of the defect [19, 20]. The pedicle of the flap was anastomosed to the ulnar artery and vein (see Figure 3). For radius reconstruction, a tricortical allogenic bone graft of the iliac crest was used. Re-osteosynthesis was performed using a 3.5 mm VA-LCP, while excentric drilling was performed on both sides of the graft-host junctions. The tricortical iliac crest allograft was obtained from a certified musculoskeletal tissue bank and processed according to standardized sterilization protocols. Postoperative care involved immobilisation with an upper-arm plaster cast for 4 weeks, followed by a forearm cast for additional 2 weeks. X-ray controls were performed immediately postoperatively, 3 weeks, 6 weeks, 12 weeks, 6 months, 12 months, and 18 months postoperatively.

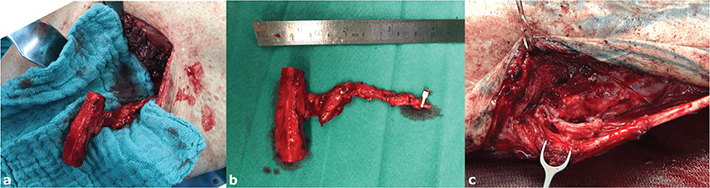

Figure 3. Intraoperative images: An intraoperative photograph of the cortico-cancellous medial femur condyle flap harvesting (a), the dimension of the graft with its pedicle (b), and its anastomosis to the ulnar artery and vein after flap inset and osteosynthesis (c).

Ethics

This retrospective case report was approved by the regional ethical review committee (EK 1093/2023). Patients provided written informed consent for inclusion.

Discussion and conclusions

The procedure examined in this case report includes a simultaneous reconstruction of large bony defects of the ulna and the radius using a vascularized cortico-cancellous MFC flap and an iliac crest allograft for post-traumatic, atrophic non-union of the forearm. Bony union of MFC flap was achieved within 3 months, which is at the lower end of reported healing times [21]. The rapid union observed in our cases is consistent with previous reports indicating thatdiabetes mellitus, a body mass index greater than 30 kg/m², and more than one previous surgery are associated with longer healing times [21].

Recent systematic reviews show an overall bony union of MFC flaps of 98 to 100% [11, 16]. In 2009, de Smet was one of the first authors who reported solid union of four non-unions of the ulna and two non-unions of the radius with prior surgeries that were successfully treated with MFC flaps [22]. In contrast, revision fixation using a bone allograft not only failed to achieve union at the allograft-host junctions, whose occurrence was described between 30 and 50% in large bone defects of the radius [18, 17], but even resulted in an entire failure of allograft incorporation in both cases. The ulna is generally considered to have poorer regenerative properties compared to the radius [23]. Despite comparable sizes of the bone defects in the forearm diaphysis, reconstruction using vascularized MFC flap appeared biologically superior in these cases compared to the iliac crest allograft in all aspects. The absence of intrinsic vascularity, cellularity and growth factors in combination with the high mechanical strain of the forearm during movement pose essential drawbacks of the allograft [4]. Hence, the critical defect size for achieving bony union seemed to be exceeded in these two cases.

The main limitation of this retrospective case report is the sample size including two patients, which may be caused by the rare occurrence of extensive, atrophic non-unions of the forearm. From a technical standpoint, the two cases also differed in fixation strategy, as the radial allograft was secured with one fixed-angle screw in the first patient and with three fixed-angle screws in the second. This variation likely affected construct rigidity and may have influenced graft stability and biological incorporation. The choice of allograft for radius reconstruction failed its intended aim of reducing donor site morbidity and shortening surgical time for simultaneous forearm reconstruction, instead necessitating another complex revision surgery.

For extensive, atrophic forearm non-unions, we conclude that the MFC cortico-cancellous flap represents a favorable option for ulna reconstruction. For simultaneous radius reconstruction, an autologous bone flap seems necessary to provide sufficient biological healing properties, with the defect length determining the necessity for either a vascularized or non-vascularized option. Another surgical option would be a double-barrel vascularized fibular graft for the reconstruction of both forearm bones, while flap trimming and the positioning of the pedicle might imply a surgical challenge [24]. While forearm shortening osteotomy in a case with 1.5 cm resection was reported with satisfactory results, recent studies report considerable loss of range of motion in pronation and supination and in finger flexion in shortening of more than 3 cm [25–27]. Because the vascularized MFC flap significantly outperformed the iliac bone allograft, a vascularized graft seems recommended whenever possible in large bone defects resulting from forearm non-union [28].

Acknowledgments

This study is supported by the Johannes Kepler Open Access Publishing Fund and the federal state of Upper Austria.

During the preparation of this work the author(s) used ChatGPT, in order to enhance the grammar, and linguistic quality of the text. After using this tool/service, the author(s) reviewed and edited the content as needed and take(s) full responsibility for the content of the publication.

Data availability statement

All relevant data supporting the findings of this report are included within the article.

Ethics declarations & trial registry information

This retrospective case report was approved by the regional ethical review committee (EK 1093/2023).

Authors’ contributions

Conceptualization: Manfred Schmidt, Stefan M Froschauer; Methodology: Manfred Schmidt; Formal analysis and investigation: Matthias Holzbauer, Klaus Strassmair, Maximilian Zaussinger, Manfred Schmidt, Stefan M Froschauer; Writing - original draft preparation: Matthias Holzbauer; Writing - review and editing: Manfred Schmidt; Funding acquisition: n/a; Resources: Manfred Schmidt, Matthias Holzbauer; Supervision: Tobias Gotterbarm; Manfred Schmidt.
