ORIGINAL REPORT

CONCOMITANT DETRUSOR AND EXTERNAL URETHRAL SPHINCTER BOTULINUM TOXIN-A INJECTIONS IN MALE SPINAL CORD INJURY PATIENTS WITH DETRUSOR OVERACTIVITY AND DETRUSOR SPHINCTER DYSSYNERGIA

Yu-Hui HUANG, MD, PhD1,3 and Sung-Lang CHEN, MD, PhD2,3

From the 1Department of Physical Medicine & Rehabilitation, 2Department of Urology, Chung Shan Medical University Hospital and 3School of Medicine, Chung Shan Medical University, Taichung, Taiwan

Objective: To investigate the effects of concomitant injections of botulinum toxin-A (BoNT-A) into the detrusor and external urethral sphincter muscles in suprasacral spinal cord injured patients with detrusor overactivity and detrusor sphincter dyssynergia.

Design: An open treatment trial with pre- and post-treatment evaluations.

Subjects: Male suprasacral spinal cord injury patients (n = 20) with neurogenic detrusor overactivity and detrusor sphincter dyssynergia who emptied their bladder by reflex voiding and were unwilling to increase the frequency of intermittent catheterization.

Methods: Cystoscopic guidance of 200 U BoNT-A injections into the detrusor muscle and 100 U into external urethral sphincter muscles were applied. The urodynamic parameters, voiding diaries and quality of life scores using Urinary Distress Inventory, Short Form (UDI-6) and Incontinence Impact Questionnaire, Short Form (IIQ-7) were compared.

Results: All participants experienced a significant mean reduction in maximal detrusor pressure and maximal urethral pressure profile, and a mean significant increase in maximal cystometric bladder capacity 12 weeks after concomitant injections. Bladder diaries demonstrated persistently increased spontaneous voided volume, but no increase in post-void residual ratio, daily clean intermittent catheterization (CIC) frequency and diaper pad use from baseline to 24 weeks. UDI-6 scores were significantly improved at 4 and 12 weeks and IIQ-7 scores improved only at 12 weeks.

Conclusion: Concomitant detrusor and external urethral sphincter BoNT-A injections may decrease detrusor and urethral pressure without increasing post-void residual ratio and diaper pad use. For spinal cord injury patients with neurogenic detrusor overactivity and detrusor sphincter dyssynergia who are unwilling, or for whom it is inconvenient, to increase CIC frequency and who want to preserve spontaneous voiding, this treatment may provide an optional alternative.

LAY ABSTRACT

Detrusor botulinum toxin type A (BoNT-A) injection has become the standard of care for bladder overactivity associated with neurological pathology in recent years. However, increased post-void residual and even acute urinary retention make it difficult for patients to accept this treatment. Our study demonstrates that a combination of detrusor and urethra sphincter BoNT-A injections may relieve detrusor and urethral pressures without increasing intermittent catheterization (IC) frequency. Life quality associated with voiding is also improved after combined injections. Physicians should take into account the patient’s expectation and ability to manage his bladder when planning BoNT-A injection in treatment of neurogenic lower urinary tract dysfunction (NLUTD) in spinal cord injury (SCI) patients. For male SCI patients with NLUTD who are unwilling or inconvenient to increase IC frequency and want to preserve spontaneous voiding, this treatment may provide optional alternative.

Key words: detrusor; urethra sphincter; Botulinum toxin; urodynamics; catheterization; spinal cord injury.



Citation: J Rehabil Med 2022; 54: jrm00264 DOI: http://dx.doi.org/10.2340/jrm.v54.122.

Copyright: © Published by Medical Journals Sweden, on behalf of the Foundation for Rehabilitation Information. This is an Open Access article distributed under the terms of the Creative Commons Attribution-NonCommercial 4.0 International License (https://creativecommons.org/licenses/by-nc/4.0/)

Accepted: Jan 12, 2022; Epub ahead of print: Feb 16, 2022; Published: Mar 29, 2022

Correspondence address: Sung-Lang Chen, Department of Urology, Chung-Shan Medical University Hospital, #110, Chien-Kuo North Road, Section 1, Taichung, Taiwan. E-mail: cshy650@csh.org.tw

Competing interests and funding: The authors have no conflicts of interest to declare.



Approximately 81% of patients with spinal cord injury (SCI) will experience some form of urinary dysfunction within 1 year of their injury (1). Only approximately 1% of these patients will recover fully. In another cross-sectional study, only 21% of patients with SCI reported having normal voiding (2). Overall, 95% of suprasacral SCI patients with neurogenic lower urinary tract dysfunction (NLUTD) experience neurogenic detrusor overactivity (NDO) and/or detrusor sphincter dyssynergia (DSD) (3).

NLUTD is a dynamic condition with its own natural history, and it can cause functional and morphological changes in both the lower and upper urinary tracts (4, 5). NDO is caused by spontaneous, involuntary contractions of the bladder wall during urinary filling. DSD occurs when the internal or external urethral sphincter (EUS) contracts inappropriately or fails to relax during detrusor contraction. NDO and DSD both have the potential to reduce bladder wall compliance and elevated filling pressure, possibly resulting in vesicoureteral reflux and even renal failure (6).

Dykstra et al. first described the injection of botulinum toxin type A (BoNT-A) into the EUS in patients with SCI to induce chemical sphincterotomy and treat DSD (7). The following studies, including our 2 previous reports, have also demonstrated the efficacy of BoNT-A in DSD (8–10). Several researchers, including Schurch et al., reported that injecting BoNT-A into the detrusor significantly increased storage capacity and decreased bladder pressure to treat NDO (11–13). Both DSD and NDO have been reported to be triggers of autonomic dysreflexia (AD), as obstruction of the bladder outlet during detrusor muscle contractions increases intravesical pressure, resulting in the transmission of noxious bladder sensations. According to the literature, injecting BoNT-A into the detrusor or EUS prevented AD (14, 15). These findings demonstrate that injecting BoNT-A into the detrusor is the standard method for treating NDO in patients with SCI who are intolerant of, or resistant to, oral anticholinergic medications. In 2011, the US Food and Drug Administration (FDA) approved BoNT-A for medical use in the treatment of NDO, particularly in cases of urinary incontinence, because detrusor overactivity is associated with neurological pathology refractory to anticholinergic therapy (16, 17). In 2013, the Taiwan FDA also approved 200 U BoNT-A for NDO treatment, and the National Health Insurance Administration granted reimbursement. However, detrusor BoNT-A injections usually cause impaired detrusor contractility, large post-void residual (PVR), or urinary retention in NDO treatment, necessitating periodic clean intermittent catheterization (CIC) for approximately 70% of patients (18). Frequent CICs are required for increased PVR and even acute urine retention (AUR). These de novo problems may cause physical and environmental inconvenience to patients, making it difficult for them to accept this treatment.

Concomitant detrusor and EUS injections in SCI patients with NDO and DSD may be an alternative for those who want to preserve spontaneous voiding. Until now, only a few clinical studies have investigated the effects of the combination of detrusor and EUS injections. The aim of this study was to determine the feasibility and efficacy of injecting BoNT-A into both the detrusor and the EUS in male suprasacral SCI patients with NDO and DSD.

METHODS

Participants

The participants were males over the age of 18 years who had suprasacral SCI and were from the rehabilitation department ward. All the enrolled patients were neurologically stable (i.e. their neurological symptoms had not progressed in the previous 3 months). The inclusion criteria were: (i) presence of NDO and DSD, as defined by the International Continence Society (19), (ii) bladder emptying by adjunct intermittent catheterization (IC) with reflex voiding and unwillingness to increase frequency of IC for personnel reasons, and (iii) inadequate response or intolerance to oral anticholinergic agents (oxybutynin, trospium, tolterodine, propiverine, and solifenacin), spasmolytic agents (hyoscine butylbromide), skeletal muscle relaxants (baclofen), and alpha-blockers (doxazosin mesylate, terazosin, tamsulosin, and silodosin). Exclusion criteria were: (i) BoNT-A allergy, (ii) coagulopathy disease and myasthenia gravis, (iii) acute urinary tract infection (UTI), (iv) other causes of bladder outlet obstruction (such as urethral stricture and benign prostatic hyperplasia), and (v) prior sphincterotomy. Before each injection, patients were informed about the potential side-effects of the toxin. This prospective study was approved by the ethics committee and the Institutional Review Board of Chung Shan Medical University Hospital (IRB approval number: CS1-16065). Each patient was fully informed about the procedure, and written consent was obtained before treatment. All enrolled patients had to stop taking alpha-blockers, spasmolytic agents, and anticholinergic agents 1 week before toxin injection and during the follow-up period.

Injection procedure

Injections were performed in the operating room using a 22.5 FR cystoscope (Olympus, Tokyo, Japan). The equipment for vital sign monitoring was set up as part of the routine general anaesthesia, and an intravenous sedative was administered to all the patients. The bladder was instilled with 100–150 mL sterile saline to achieve adequate visualization and avoid the blood vessels during injections. A 23-gauge injection needle (Cook Urological Incorporated, Bloomington, IN, USA) was inserted 2 mm into the detrusor. Two vials of Botox (Allergan, Irvine, CA, USA), each containing 100 U BoNT-A, were reconstituted in a total of 20 mL sterile saline. A total of 20 1-mL injections were administered, evenly distributed approximately 1 cm apart across the bladder wall. For EUS injection, 100 U BoNT-A was diluted with 2 mL sterile saline. Subsequently, equal aliquots of the diluted toxin were injected into the EUS approximately 1–1.5 cm deep at 3, 6, 9, and 12 o’clock positions. An additional 0.2 mL normal saline was then injected to ensure that the maximum amount of toxin left in the needle was delivered. Oral prophylactic antibiotics were administered on the day of treatment, and a Foley catheter was routinely indwelled for 1 day.

Outcome measures

Each participant underwent a video-urodynamic (VUD) study, which was performed with a Urodyn 5500 apparatus (Dantec Inc., Skovlunde, Denmark) before and 12 weeks after the BoNT-A injection. This examination was performed using filling cystourethrometrography (CUMG), sphincter electromyography (EMG), and static urethral pressure profilometry (UPP). CUMG was performed using a triple lumen catheter, which measured the intravesical and urethral pressures at the same time while continuously bladder filling isotonic saline at a rate of 30 mL/min. The measuring point of the urethral pressure was at the maximum urethral pressure. Trans-perineal EMG of the external urethral sphincter was performed using disposable concentric needle electrodes. The needle was inserted into the perineum midline approximately 1.5–2 cm anterior to the anus. While the electrode was directed toward the apex of the prostate, its position was monitored using a gloved finger in the rectum. The final localization was determined by EMG monitoring of the motor unit activity and fluoroscopic examination of the needle position. A VUD study was conducted at baseline and 12 weeks after toxin injections.

The PVR was measured using catheterization. The bladder diary and diaper pad usage were recorded at baseline, and 4, 12, and 24 weeks after injections. The symptom distress and the impact of urinary incontinence on daily life were assessed using a validated Chinese version of the Urogenital Distress Inventory (UDI-6) short form and Incontinence Impact Questionnaire (IIQ-7) short form, respectively (20). The UDI-6 questionnaire has 6 questions with possible answers of “no”, “a little”, “moderately” and “very much”, whereas the IIQ-7 questionnaire has 7 questions with the same ordinal scale. For the total scores of both the IIQ-7 and UDI-6 questionnaires, the answers “no”, “a little”, “moderately” and “very much” were assigned values of 0, 1, 2, and 3, respectively. Thus, when the values from each of the questions were summed, the total scores ranged from 0 to 21 for IIQ-7 and from 0 to 18 for UDI-6. The scores at baseline were compared with the scores at 4, 12, and 24 weeks after treatment. According to our previous study and the Consortium for Spinal Cord Medicine, an increase of more than 20 mmHg in systolic blood pressure (SBP) was considered an AD reaction (21, 22). Related adverse events were also recorded throughout the study.

Statistical analysis

The urodynamic parameters before and after BoNT-A injection were compared using the Wilcoxon signed-rank test. The longitudinal data were analysed using the Friedman test, and the post hoc analysis was conducted using the Wilcoxon signed-ranks test with Bonferroni correction. All tests had a significance level of p < 0.05. Statistical analysis was performed using Statistical Package for the Social Sciences (SPSS for Windows Version 16.0, SPSS Inc., Chicago, IL, USA).

RESULTS

The mean age of the enrolled participants was 38.6 (standard deviation (SD) 10.8) years, and the mean duration of injury was 83.5 (41.6) months. The distribution of the SCI level was 12 (60%) cervical and 8 (40%) thoracic. The participants’ occupations included 3 taxi drivers, 4 street vendors, 3 civil servants, 4 factory operators, 2 mouth and foot painting artists, and 4 unemployed individuals. The reasons for unwillingness to increase IC frequency were inconvenient work environment in 8 cases, avoiding poor work performance stigma in 5 cases, and not wanting to increase self and caregiver’s loads in 7 cases (Table I). Concomitant BoNT-A injections significantly improved the VUD parameters at 12 weeks. The filling volume of DO onset increased significantly from 220 (125) to 280 (156) mL (p = 0.019). Both the maximal detrusor pressure and maximal urethral pressure profiles decreased from 100 (28) to 68 (22) cmH20 (p < 0.001) and from 98 (21) to 79 (18) cmH20 (p < 0.001), respectively. The maximal cystometric bladder capacity increased from 293 (136) to 384 (116) mL (p = 0.003). However, there was no significant increase in PVR after treatment (244 (130) vs 301 (128) mL; p = 0.108). During the VUD study, the mean SBP decreased significantly from 23 (21) to 16 (12) mmHg (p = 0.037), but the mean diastolic blood pressure (DBP) did not decrease (Table II).

Table I. Basic demographic data for the patients with supra-sacral spinal cord injury (SCI) with neurogenic detrusor overactivity (NDO) and detrusor sphincter dyssynergia (DSD)
Characteristics
Total number of patients 20
Age, years, mean (SD) 38.6 (10.8)
Injury duration, months,
Mean (SD)		 30–182
83.5 (41.6)
Injury level, n (%)
 Cervical 12 (60)
 Thoracic 8 (40)
AIS scale, n (%)
 Grade A 12 (60)
 B 5 (25)
 C 2 (10)
 D 1 (5)
Occupation, n
 Taxi driver 3
 Street vendor 4
 Civil servant 3
 Factory operator 4
 Mouth and foot painting artist 2
 Unemployment 4
Reason for unwilling to increase frequency of IC
 Inconvenient work place 8
 Worry to influence working performance 5
 Worry to increase self and caregiver workload 7
SCI: spinal cord injury; NDO: neurogenic detrusor overactivity; DSD: detrusor sphincter dyssynergia; SD: standard deviation; AIS: American Spinal Injury Association Impairment Scale; IC: intermittent catheterization.



Table II. Video-urodynamic study parameters at baseline and at 12 weeks after concomitant injections
Baseline 12 weeks after injection p-value
Volume of first DO, mL, mean (SD) 220 (125) 280 (156) 0.019*
Maximal Pdet, cm H2O, mean (SD). 100 (28) 68 (22) < 0.001*
Plp, cm H2O, mean (SD) 89 (27) 61 (22) < 0.001*
MUCP, cm H2O, mean (SD) 98 (21) 79 (18) 0.001*
Cystometric bladder capacity, mL, mean (SD) 293 (136) 384 (116) 0.003*
PVR, mL, mean (SD) 244 (130) 301 (128) 0.108
PVR/cystometric bladder capacity ratio, mean (SD) 82 (17) 78 (20) 0.459
SBP change mmHg, mean (SD) 23 (21) 16 (12) 0.037*
DBP change mmHg, mean (SD) 11 (10) 10 (11) 0.363
*Statistical significance is at p < 0.05
DO: detrusor overactivity; Pdet: detrusor pressure; Plp: leak point pressure; MUCP: Maximal urethral closing pressure; PVR: post void residual; SBP: systolic blood pressure; DBP: diastolic blood pressure.

The bladder diaries recorded at baseline, and 4, 12, and 24 weeks revealed a persistent increase in spontaneous voided volume (Fig. 1A). There was a significant increase only at 4 and 12 weeks after Bonferroni correction of the p-value because of multiple comparisons (statistical significance at p < 0.0167). The PVR increased significantly at 4 and 12 weeks (Fig. 1B), while the bladder capacity increased significantly at 4, 12, and 24 weeks (Fig. 1C). According to these results, the PVR ratio (PVR/bladder capacity) showed no statistically significant differences at 4, 12, and 24 weeks (Fig. 1D). There was no significant change in daily IC frequency (Fig. 2A) or daily diaper pad usage (Fig. 2B) at baseline, 4, 12, and 24 weeks. The UDI-6 scores improved significantly at 4 and 12 weeks (Fig. 3A). The IIQ-7 scores only improved significantly at 12 weeks (Fig. 3B). Table III summarizes the results of all voiding diaries and questionnaires. The frequency (patients’ visit response) and intensity of 6 patients with pre-BoNT-A injections AD (SBP elevation > 20 mmHg during the VUD study) decreased (measurement during VUD study) after concomitant BoNT-A injections (Table IV). There were no major injection-related side-effects, and only 2 patients experienced mild haematuria for 1 day.

Figure 1
Fig. 1. Comparison of voiding diaries parameters change from baseline to 24 weeks. (A) Spontaneous voided volume, (B) post-void residual, (C) voiding diary bladder capacity, and (D) post-void residual/bladder capacity ratio. *Statistical significance is at p < 0.0167 (Bonferroni correction of p).

Figure 2
Fig. 2. Comparison of (A) intermittent catheterization (IC) frequency and (B) diaper pad use from baseline to 24 weeks. Statistical significance is at p < 0.0167 (Bonferroni correction of p).

Figure 3

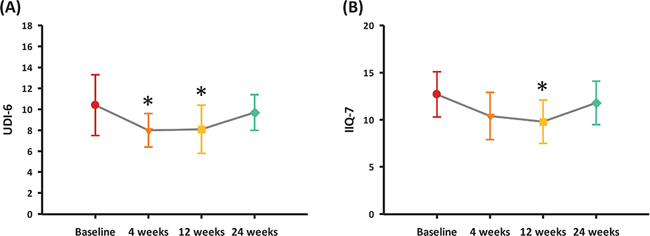

Fig. 3. Comparison of (A) Urinary Distress Inventory, Short Form (UDI-6) and (B) Incontinence Impact Questionnaire, Short Form (IIQ-7) scores from baseline to 24 weeks. *Statistical significance is at p < 0.0167 (Bonferroni correction of p).

Table III. Voiding diary parameters and questionnaire scores at baseline, and 4, 12 and 24 weeks after concomitant injections
Baseline 4 weeks 12 weeks 24 weeks
Spontaneous voided volume, mL, mean (SD) 119 (66) 194 (92) 165 (76) 146 (88)
p-value < 0.001* 0.003* 0.046
PVR, mL, mean (SD) 228 (66) 311 (106) 305 (109) 275 (93)
p-value 0.001* 0.01* 0.022
Bladder capacity, mL, mean (SD) 347 (69) 505 (63) 470 (100) 421 (75)
p-value < 0.001* < 0.001* 0.001*
PVR/bladder capacity ratio, mean (SD) 66 (18) 61 (17) 63 (19) 65 (20)
p-value 0.12 0.39 0.83
IC frequency, time/per day, mean (SD) 4.5 (1.5) 3.8 (1.2) 4.0 (1.2) 4.3 (1.6)
p-value 0.03 0.288 0.635
Diaper pad use, piece/per day, mean (SD) 3.8 (1.4) 3.7 (1.2) 3.3 (1.0) 2.9 (1.2)
p-value 0.943 0.135 0.031
UDI-6, mean (SD) 10.4 (2.9) 8.0 (1.6) 8.1 (2.3) 9.7 (1.7)
p-value < 0.001* < 0.001* 0.130
IIQ-7, mean (SD) 12.7 (2.4) 10.4 (2.5) 9.8 (2.3) 11.8 (2.3)
p-value 0.002 < 0.001* 0.119
*Statistical significance is at p < 0.0167 (Bonferroni correction of p).
PVR: post-void residual; IC: intermittent catheterization; UDI-6: Urinary Distress Inventory, Short Form; IIQ-7: Incontinence Impact Questionnaire, Short Form.



Table IV. Systolic blood pressure (SBP) and diastolic blood pressure (DBP) changes during video-urodynamic (VUD) study (at baseline and 12 weeks after injections) in 6 patients with autonomic dysreflexia (AD) improvement
Patient number Baseline 12 weeks after injections
SBP change, mmHg DBP change, mmHg SBP change, mmHg DBP change, mmHg
1 98 54 47 32
2 44 32 10 15
3 30 15 12 6
4 33 15 15 9
5 48 25 23 16
6 29 10 13 5
Mean (SD) 47.0 (26.2) 25.2 (16.2) 20.0 (14.0) 13.8 (10.0)
SD: standard deviation.

DISCUSSION

These results demonstrate that a combination of detrusor and EUS BoNT-A injections may decrease detrusor and urethral pressures without increasing IC frequency and diaper pad usage in patients who empty their bladder via reflex voiding in addition to IC and are unwilling to increase IC frequency.

The meta-analysis results indicate that BoNT-A is effective in treating NDO after SCI. The use of BoNT-A injections is associated with a decrease in incontinence episodes, bladder pressure, and AD events (23). The current study data also demonstrated a significant decrease in detrusor leak point pressure and maximal urethra closure pressure, and an increase in bladder volume of the first DO after treatment. These VUD study improvements could prevent the progression of NLUTD and decrease the risk of renal failure in SCI patients. However, approximately 70% of patients require periodic IC after treatment, and a possibly subsequent UTI could result in a new problem (24). Patients with SCI who use voiding as their primary method of bladder emptying are often very reluctant or functionally unable to undergo IC (25). Furthermore, studies have demonstrated that the IC rate decreases gradually, from approximately 45%–50% at rehabilitation discharge to 15%–20% after 30–45 years of NLUTD (26, 27). In a long-term real-life study on BoNT-A injections for NDO treatment, the IC discontinuation rate after 7 years was 11.3%. The 2 most common reasons were IC-related difficulties and personal convenience (28). The difficulty of catheterization is exacerbated by a spasmodic and unrelaxed urethra, which can potentially result in false tract trauma or AD. Patients and physicians may be hesitant to use current BoNT-A injections for the treatment of NLUTD because of these drawbacks. Some male SCI patients with NDO and DSD empty their bladders by reflex spontaneous voiding and/or adjunct IC when the environment is not conducive to IC.

Dosage reduction (100 U) of detrusor BoNT-A injections for SCI patients with NDO and DSD has been recommended as a technique for minimizing the risk of increasing PVR, urinary retention, and subsequent need for IC. However, the dose trade-off does not appear to meet the primary treatment goal of lowering maximal detrusor pressure and incontinence rate (29). Currently, there is no single approach for treating NDO and DSD simultaneously. The primary aim of NDO treatment is to ensure that the detrusor pressure remains within safe limits. However, a meta-analysis revealed that injecting BoNT-A into the EUS resulted in variable improvements in maximal detrusor pressure (30). In our 2 previous prospective studies, injections only into the EUS for DSD treatment were found to significantly reduce integrated electromyography and static and maximal urethral pressures, but not maximal detrusor pressure. A combination of low-dose EUS and standard-dose detrusor BoNT-A injections might be feasible in cases where patients prefer to preserve spontaneous voiding function or where IC is not acceptable. If additional severe incontinence occurs post-EUS injection, it should be questioned. However, the possibility of transient de novo stress urinary incontinence after BoNT-A injections for DSD treatment is low (approximately 4%) (31). A German study on idiopathic DO patients demonstrated that injecting low doses (50–100 U) of BoNT-A into the EUS in addition to detrusor injection could be an option for reducing the risk of significantly increasing residual urine (32). Only 1 published study reported on combined injections in SCI patients with NDO and DSD. Huang et al. used the same BoNT-A doses as the current study treatment dose (i.e. 200 U for the detrusor and 100 U for the EUS) (33). This study demonstrated that combined injections were an effective treatment for lowering maximal detrusor pressure and maximal urethral closure pressure to protect the upper urinary tract and improve quality of life (QoL) for the patients with short-term (12 weeks) follow-up. However, it did not demonstrate any differences in bladder evacuation method, IC frequency, and PVR before and after combined injections. The most common bladder evacuation method in Western countries is IC, followed by triggered reflex voiding and suprapubic cystostomy catheterization (27). In a survey for NLUTD treatment after SCI in Taiwan, approximately 80% of patients reported needing an indwelling catheter to manage their bladder, followed by reflex voiding (34). The main reasons for this discrepancy could be a lack of adequate infrastructure for IC and a robust social welfare system in developing countries. Workplace accommodations, such as easily accessible toilets, are essential for a successful return to work (35). The bladder programme may vary from person to person depending on their specific needs. Seventy percent (14/20) of enrolled participants in the current study use triggered reflex voiding at work and self-catheterization off work to empty their bladders. It is inconvenient for outdoor workers to perform IC while on duty. Factory operators and civil servants also worry that IC may delay their scheduled work and decrease their performance. The remaining patients (6/20) initiate IC through a third party because of difficulties in hand coordination. Hence, these patients do not want to increase the workload of their caregivers by having frequent ICs.

Our concomitant injections preserved the spontaneous voiding of patients. Although PVR increased statistically from baseline to 4 and 12 weeks after injections, the PVR ratio (PVR/bladder capacity) did not change significantly. The mean injury duration (83.5 (41.6) months) of our participants was longer than that of previous combined injections studies (39.08 (16.29) months) (33), which could explain the high PVR at baseline. All of our patients were catheter-free during their work, and they used a diaper pad in case of occasional urine leaks. The mean diaper pad usage did not change significantly during the 24-week follow-up period. Interestingly, the effect of injections on the mean spontaneous voided volume appeared to have lessened at 24 weeks (no statistical difference, with Bonferroni correction). The mean diaper pad usage also had a decreasing trend at 24 weeks. According to a previous report, the duration of BoNT-A-induced detrusor paralysis was 9 months or more compared with the duration after injection into the EUS, which was 3–4 months (10). These results strongly suggest that smooth and striated muscles react differently to the toxin. Holds et al. discovered axonal and unmyelinated sprouts in the human striated muscle after BoNT-A injection, indicating that nerve sprouting contributes to early recovery of muscular activity (36). Conversely, Haferkamp et al. reported no increase in axonal sprouting after injections into the human bladder (37). The treatment difference between the smooth and striated muscles may explain why the EUS progressively regained its tonicity at 12 weeks, but the detrusor muscle remained paralyzed at 24 weeks. Subsequent decrease in spontaneous voided volume and mean diaper pad usage is rational.

The filling volume of DO onset and cystometric bladder capacity significantly increased from 220 (125) to 280 (156) mL and from 293 (136) to 384 (116) mL, respectively. The mean SBP change also decreased significantly from 23 (21) to 16 (12) mmHg. According to the guidelines from the Consortium for Spinal Cord Medicine, pressure levels that are 20–40 mmHg higher than baseline could be a sign of AD (21, 22). Detrusor BoNT-A injections may modulate the afferent C-fibres by decreasing nerve growth factors and inhibiting adenosine triphosphate release in the bladder (38, 39). Furthermore, BoNT-A injections improve bladder compliance by reducing chemical irritation, wall fibrosis, and mechanical stiffness. These urodynamic outcome improvements may partly explain why the severity and frequency of AD in 6 of the patients in the current study decreased after combined injections.

NDO and DSD can cause urodynamically measured increased bladder storage pressures, increased PVR, UTI, catheterization difficulties, and urinary incontinence, which can negatively impact health-related quality of life (HR-QoL) (40). The physical and psychological benefits of the injections on voiding function result in decreased urinary tract distress and improved QoL for patients with incontinence. The mean UDI-6 scores improved significantly at 4 and 12 weeks, while the mean IIQ-7 scores improved at 12 weeks, but not at 24 weeks. The improvements in UDI-6 and IIQ-7 scores appear to be associated with the toxin effect on the EUS more than on the detrusor muscle.

Although this study confirms the effects of concomitant injection of 200 U BoNT-A and 100 U BoNT-A into the detrusor and EUS, respectively, in selected SCI patients with NDO and DSD, there are still some limitations. First, there are only 20 male patients, which is insufficient evidence. Larger prospective, controlled studies are still required to establish the overall effectiveness of the proposed method. Secondly, in terms of generalizability of the results, all of our enrolled patients are males who are unwilling, or find it inconvenient, to increase IC frequency. However, males account for 80% of the SCI population. Thirdly, the VUD study was conducted only at baseline and 12 weeks, and prolonged toxin effects on NDO and DSD are not available. However, our voiding diary follow-up period was 24 weeks after treatment. We could observe the restoration of storage and voiding dysfunction at these periods.

In conclusion, when administering BoNT-A injections to SCI patients for NLUTD treatment, physicians should consider the patient’s expectations and ability to manage their bladder. Achieving complete dryness at the expense of regular IC is an impractical treatment goal for all patients with NLUTD. Concomitant detrusor and EUS BoNT-A injections may decrease detrusor and urethral pressures without increasing the PVR ratio, IC frequency, and diaper pad usage. This treatment may be an alternative for male SCI patients with NDO and DSD who are unwilling, or find it inconvenient, to increase IC frequency and wish to preserve spontaneous voiding.

ACKNOWLEDGEMENTS

This study was supported by a research grant (grant number CSH 2017-C-032) from the Chung Shan Medical University Hospital.

REFERENCES

  1. Stover SL, DeVivo MJ, Go BK. History, implementation, and current status of the National Spinal Cord Injury Database. Arch Phys Med Rehabil 1999; 80: 1365–1371.
  2. Liu CW, Attar KH, Gall A, Shah J, Craggs M. The relationship between bladder management and health-related quality of life in patients with spinal cord injury in the UK. Spinal Cord 2010; 48: 319–324.
  3. Weld KJ, Dmochowski RR. Association of level of injury and bladder behavior in patients with post-traumatic spinal cord injury. Urology 2000; 55: 490–494.
  4. Averbeck MA, Madersbacher H. Follow-up of the neuro-urological patient: a systematic review. BJU Int 2015; 115 Suppl 6: 39–46.
  5. Lin CT, Chiang BJ, Liao CH. Perspectives of medical treatment for overactive bladder. Urol Sci 2020; 31: 91–98.
  6. Morrisroe SN, Chancellor MB. Botulinum toxin A in the treatment of neurogenic and idiopathic urinary incontinence. Rev Urol 2007; 9: 44–45.
  7. Dykstra DD, Sidi AA, Scott AB, Pagel JM, Goldish GD. Effects of botulinum A toxin on detrusor-sphincter dyssynergia in spinal cord injury patients. J Urol 1988; 139: 919–922.
  8. Chen SL, Bih LI, Chen GD, Huang YH, You YH, Lew HL. Transrectal ultrasound-guided transperineal botulinum toxin a injection to the external urethral sphincter for treatment of detrusor external sphincter dyssynergia in patients with spinal cord injury. Arch Phys Med Rehabil 2010; 91: 340–344.
  9. Chen SL, Bih LI, Huang YH, Tsai SJ, Lin TB, Kao YL. Effect of single botulinum toxin A injection to the external urethral sphincter for treating detrusor external sphincter dyssynergia in spinal cord injury. J Rehabil Med 2008; 40: 744–748.
  10. Schurch B, Hauri D, Rodic B, Curt A, Meyer M, Rossier AB. Botulinum-A toxin as a treatment of detrusor-sphincter dyssynergia: a prospective study in 24 spinal cord injury patients. J Urol 1996; 155: 1023–1029.
  11. Schurch B, de Sèze M, Denys P, Chartier-Kastler E, Haab F, Everaert K, et al. Botulinum toxin type a is a safe and effective treatment for neurogenic urinary incontinence: results of a single treatment, randomized, placebo controlled 6-month study. J Urol 2005; 174: 196–200.
  12. Gamé X, Castel-Lacanal E, Bentaleb Y, Thiry-Escudié I, De Boissezon X, Malavaud B, et al. Botulinum toxin A detrusor injections in patients with neurogenic detrusor overactivity significantly decrease the incidence of symptomatic urinary tract infections. Eur Urol 2008; 53: 613–618.
  13. Giannantoni A, Mearini E, Del Zingaro M, Porena M. Six-year follow-up of botulinum toxin A intradetrusorial injections in patients with refractory neurogenic detrusor overactivity: clinical and urodynamic results. Eur Urol 2009; 55: 705–711.
  14. Gallien P, Robineau S, Verin M, Le Bot MP, Nicolas B, Brissot R. Treatment of detrusor sphincter dyssynergia by transperineal injection of botulinum toxin. Arch Phys Med Rehabil 1998; 79: 715–717.
  15. Schurch B, Stöhrer M, Kramer G, Schmid DM, Gaul G, Hauri D. Botulinum-A toxin for treating detrusor hyperreflexia in spinal cord injured patients: a new alternative to anticholinergic drugs? Preliminary results. J Urol 2000;164: 692–697.
  16. Cruz F, Herschorn S, Aliotta P, Brin M, Thompson C, Lam W, et al. Efficacy and safety of onabotulinumtoxinA in patients with urinary incontinence due to neurogenic detrusor overactivity: a randomised, double-blind, placebo-controlled trial. Eur Urol 2011; 60: 742–750.
  17. Medication guide of BOTOX. 2011. [cited August 2021]. Available from: https://www.accessdata.fda.gov/drugsatfda_docs/label/2012/103000Orig1s5253mg.pdf
  18. Wyndaele JJ, Van Dromme SA. Muscular weakness as side effect of botulinum toxin injection for neurogenic detrusor overactivity. Spinal Cord 2002; 40: 599–600.
  19. Haylen BT, de Ridder D, Freeman RM, Swift SE, Berghmans B, Lee J, et al. An International Urogynecological Association (IUGA)/International Continence Society (ICS) joint report on the terminology for female pelvic floor dysfunction. Neurourol Urodyn 2010; 29: 4–20.
  20. Uebersax JS, Wyman JF, Shumaker SA, McClish DK, Fantl JA Short forms to assess life quality and symptom distress for urinary incontinence in women: the Incontinence Impact Questionnaire and the Urogenital Distress Inventory Continence Program for Women Research Group. Neurourol Urodyn 1995; 14:131–139.
  21. Acute management of autonomic dysreflexia: individuals with spinal cord injury presenting to health-care facilities. J Spinal Cord Med 2002; 25 Suppl 1: S67–S88.
  22. Huang YH, Bih LI, Chen GD, Lin CC, Chen SL, Chen WW. Autonomic dysreflexia during urodynamic examinations in patients with suprasacral spinal cord injury. Arch Phys Med Rehabil 2011; 92: 1450–1454.
  23. Mehta S, Hill D, McIntyre A, Foley N, Hsieh J, Ethans K, et al. Meta-analysis of botulinum toxin A detrusor injections in the treatment of neurogenic detrusor overactivity after spinal cord injury. Arch Phys Med Rehabil 2013; 94: 1473–1481.
  24. Reitz A, Stöhrer M, Kramer G, Del Popolo G, Chartier-Kastler E, Pannek J, et al. European experience of 200 cases treated with botulinum-A toxin injections into the detrusor muscle for urinary incontinence due to neurogenic detrusor overactivity. Eur Urol 2004; 45: 510–515.
  25. Karsenty G, Denys P, Amarenco G, De Seze M, Gamé X, Haab F, et al. Botulinum toxin A (Botox) intradetrusor injections in adults with neurogenic detrusor overactivity/neurogenic overactive bladder: a systematic literature review. Eur Urol 2008; 53: 275–287.
  26. Cameron AP, Wallner LP, Tate DG, Sarma AV, Rodriguez GM, Clemens JQ. Bladder management after spinal cord injury in the United States 1972 to 2005. J Urol 2010; 184: 213–217.
  27. Krebs J, Wöllner J, Pannek J. Bladder management in individuals with chronic neurogenic lower urinary tract dysfunction. Spinal Cord 2016; 54: 609–613.
  28. Biardeau X, Corcos J. Intermittent catheterization in neurologic patients: update on genitourinary tract infection and urethral trauma. Ann Phys Rehabil Med 2016; 59: 125–129.
  29. Ginsberg D, Gousse A, Keppenne V, Sievert KD, Thompson C, Lam W, et al. Phase 3 efficacy and tolerability study of onabotulinumtoxinA for urinary incontinence from neurogenic detrusor overactivity. J Urol 2012; 187: 2131–2139.
  30. Mehta S, Hill D, Foley N, Hsieh J, Ethans K, Potter P, et al. A meta-analysis of botulinum toxin sphincteric injections in the treatment of incomplete voiding after spinal cord injury. Arch Phys Med Rehabil 2012; 93: 597–603.
  31. Smith CP, Nishiguchi J, O’Leary M, Yoshimura N, Chancellor MB. Single-institution experience in 110 patients with botulinum toxin A injection into bladder or urethra. Urology 2005; 65: 37–41.
  32. Schulte-Baukloh H, Weiss C, Stolze T, Herholz J, Stürzebecher B, Miller K, et al. Botulinum-A toxin detrusor and sphincter injection in treatment of overactive bladder syndrome: objective outcome and patient satisfaction. Eur Urol 2005; 48: 984–990; discussion 90.
  33. Huang M, Chen H, Jiang C, Xie K, Tang P, Ou R, et al. Effects of botulinum toxin A injections in spinal cord injury patients with detrusor overactivity and detrusor sphincter dyssynergia. J Rehabil Med 2016; 48: 683–687.
  34. Lai EC, Kao Yang YH, Kuo HC. Complication rate of neurogenic lower urinary tract dysfunction after spinal cord injury in Taiwan. Int Urol Nephrol 2014; 46: 1063–1071.
  35. Young AE, Murphy GC. Employment status after spinal cord injury (1992–2005): a review with implications for interpretation, evaluation, further research, and clinical practice. Int J Rehabil Res 2009; 32: 1–11.
  36. Holds JB, Alderson K, Fogg SG, Anderson RL. Motor nerve sprouting in human orbicularis muscle after botulinum A injection. Invest Ophthalmol Vis Sci 1990; 31: 964–967.
  37. Haferkamp A, Schurch B, Reitz A, Krengel U, Grosse J, Kramer G, et al. Lack of ultrastructural detrusor changes following endoscopic injection of botulinum toxin type a in overactive neurogenic bladder. Eur Urol 2004; 46: 784–791.
  38. Elkelini MS, Bagli DJ, Fehlings M, Hassouna M. Effects of intravesical onabotulinumtoxinA on bladder dysfunction and autonomic dysreflexia after spinal cord injury: role of nerve growth factor. BJU Int 2012; 109: 402–407.
  39. Khera M, Somogyi GT, Kiss S, Boone TB, Smith CP. Botulinum toxin A inhibits ATP release from bladder urothelium after chronic spinal cord injury. Neurochem Int 2004; 45: 987–993.
  40. Stöhrer M, Blok B, Castro-Diaz D, Chartier-Kastler E, Del Popolo G, Kramer G, et al. EAU guidelines on neurogenic lower urinary tract dysfunction. Eur Urol 2009; 56: 81–88.
